AZ505 ditrifluoroacetateSMYD2 inhibitor CAS# 1035227-44-1 |
- Mps1-IN-2
Catalog No.:BCC4153
CAS No.:1228817-38-6
Quality Control & MSDS
Number of papers citing our products

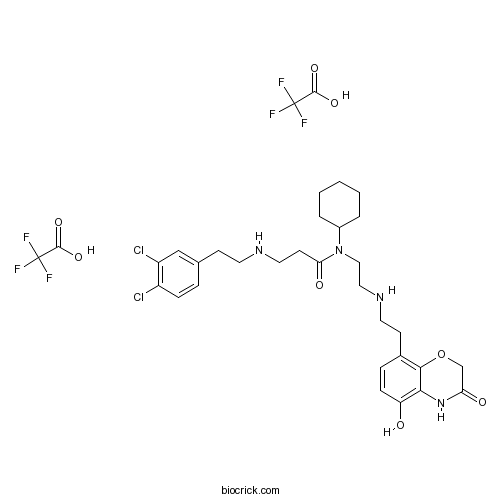

Chemical structure
3D structure
| Cas No. | 1035227-44-1 | SDF | Download SDF |
| PubChem ID | 78357790 | Appearance | Powder |
| Formula | C33H40Cl2F6N4O8 | M.Wt | 805.59 |
| Type of Compound | N/A | Storage | Desiccate at -20°C |
| Solubility | DMSO : ≥ 125 mg/mL (155.17 mM) *"≥" means soluble, but saturation unknown. | ||
| Chemical Name | N-cyclohexyl-3-[2-(3,4-dichlorophenyl)ethylamino]-N-[2-[2-(5-hydroxy-3-oxo-4H-1,4-benzoxazin-8-yl)ethylamino]ethyl]propanamide;2,2,2-trifluoroacetic acid | ||
| SMILES | C1CCC(CC1)N(CCNCCC2=C3C(=C(C=C2)O)NC(=O)CO3)C(=O)CCNCCC4=CC(=C(C=C4)Cl)Cl.C(=O)(C(F)(F)F)O.C(=O)(C(F)(F)F)O | ||
| Standard InChIKey | LTZSXVZCRINTGV-UHFFFAOYSA-N | ||
| Standard InChI | InChI=1S/C29H38Cl2N4O4.2C2HF3O2/c30-23-8-6-20(18-24(23)31)10-13-32-15-12-27(38)35(22-4-2-1-3-5-22)17-16-33-14-11-21-7-9-25(36)28-29(21)39-19-26(37)34-28;2*3-2(4,5)1(6)7/h6-9,18,22,32-33,36H,1-5,10-17,19H2,(H,34,37);2*(H,6,7) | ||
| General tips | For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months. We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months. Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it. |
||
| About Packaging | 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial. 2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial. 3. Try to avoid loss or contamination during the experiment. |
||
| Shipping Condition | Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request. | ||
| Description | AZ505 ditrifluoroacetate is a potent and selective SMYD2 inhibitor with IC50 of 0.12 μM.In Vitro:AZ505 ditrifluoroacetate is highly selective and shows an activity at submicromolar concentrations in vitro. The IC50 of AZ505 for SMYD2 is 0.12 μM, which is >600-fold greater than the IC50s of AZ505 for other histone methyltransferases, such as SMYD3 (IC50>83.3 μM), DOT1L (IC50>83.3 μM) and EZH2 (IC50>83.3 μM)[1]. AZ505 is a potent and selective SMYD2 inhibitor with an IC50 of 0.12 μM. The human SMYD (SET and MYND domain-containing protein) family of protein lysine methyltransferases contains five members (SMYD1-5). Moreover, AZ505 fails to inhibit the enzymatic activities of a panel of protein lysine methyltransferases. AZ505 is nominated for ITC binding study with Kd of 0.5 μM. In contrast, the calculated Kd for the p53 substrate peptide is 3.7 μM. AZ505 binding to SMYD2 is driven primarily by entropy, which often suggests that binding is mediated by hydrophobic interactions with few specific hydrogen bonds[2]. References: | |||||
| Kinase experiment [1]: | |
| Inhibitory activities | AZ505 binding to SMYD2 and inhibits SMYD2-mediated methylation in cells in the presence of SAM. In gastric cancer and ESCC, overexpression of SMYD2 protein was detected in 38.1% and 76.5% of patients, respectively. AZ505 inhibiting SMYD2 may be a key therapeutic strategy for these disease. |
| Cell experiment [1]: | |
| Cell | N/A |
| Preparation method | Soluble in DMSO. General tips for obtaining a higher concentration: Please warm the tube at 37℃ for 10 minutes and/or shake it in the ultrasonic bath for a while. Stock solution can be stored below -20℃ for several months. |
| Reacting condition | N/A |
| Applications | AZ505 inhibited SMYD2-mediated methylation in cells with IC50 value of 0.12 μM and AZ505 binding to SMYD2 is competitive with the peptide substrate and uncompetitive with the cofactor. AZ505 also inhibited other histone methyltransferases, such as SMYD3 (IC50>83.3 mM), DOT1L (IC50>83.3 mM) and EZH2 (IC50>83.3 mM) |
| References: [1] Ferguson AD, Larsen NA, Howard T, et dl. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73. | |
AZ505 ditrifluoroacetate Dilution Calculator
AZ505 ditrifluoroacetate Molarity Calculator
| 1 mg | 5 mg | 10 mg | 20 mg | 25 mg | |
| 1 mM | 1.2413 mL | 6.2066 mL | 12.4133 mL | 24.8265 mL | 31.0332 mL |
| 5 mM | 0.2483 mL | 1.2413 mL | 2.4827 mL | 4.9653 mL | 6.2066 mL |
| 10 mM | 0.1241 mL | 0.6207 mL | 1.2413 mL | 2.4827 mL | 3.1033 mL |
| 50 mM | 0.0248 mL | 0.1241 mL | 0.2483 mL | 0.4965 mL | 0.6207 mL |
| 100 mM | 0.0124 mL | 0.0621 mL | 0.1241 mL | 0.2483 mL | 0.3103 mL |
| * Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations. | |||||
Calcutta University
University of Minnesota
University of Maryland School of Medicine
University of Illinois at Chicago
The Ohio State University
University of Zurich
Harvard University
Colorado State University
Auburn University
Yale University
Worcester Polytechnic Institute
Washington State University
Stanford University
University of Leipzig
Universidade da Beira Interior
The Institute of Cancer Research
Heidelberg University
University of Amsterdam
University of Auckland
TsingHua University
The University of Michigan
Miami University
DRURY University
Jilin University
Fudan University
Wuhan University
Sun Yat-sen University
Universite de Paris
Deemed University
Auckland University
The University of Tokyo
Korea University
AZ505 is a potent SET and MYND domain-containing 2 protein (SMYD2) inhibitor that selectively inhibits the enzymatic activity of SMYD2 (IC50: 0.12 μM) over a variety of other protein lysine methyltransferases (IC50 > 83.3 μΜ), including SMYD3, DOT1L, EZH2, GLP, G9A and SET7/9 [1].
AZ505 contains three distinct moieties: the benzooxazinone group which interacts with the lysine-binding channel of SMYD2; the cyclohexyl group which interacts with the core SET and I-SET domains of SMYD2; and the dichlorophenethyl group which extends across the peptide binding groove of SMYD2 [1].
The X-ray crystallographic analysis has revealed that AZ505 binds into the peptide binding groove of SMYD2 competing with the peptide substrates [1].
Reference
References:
[1] Ferguson AD, Larsen NA, Howard T, Pollard H, Green I, Grande C, Cheung T, Garcia-Arenas R, Cowen S, Wu J, Godin R, Chen H, Keen N. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73. doi: 10.1016/j.str.2011.06.011. Epub 2011 Jul 21.
