Home >> Research Area >>NF-κB>>IκB/IKK>> IKKε-IN-1

IKKε-IN-1

CAS# 1292310-49-6

IKKε-IN-1

Catalog No. BCC5514----Order now to get a substantial discount!

Product Name & Size Price Stock
IKKε-IN-1:5mg $323.00 In stock
IKKε-IN-1:10mg $549.00 In stock
IKKε-IN-1:25mg $1292.00 In stock
IKKε-IN-1:50mg $2261.00 In stock
Related Products

Quality Control of IKKε-IN-1

Number of papers citing our products

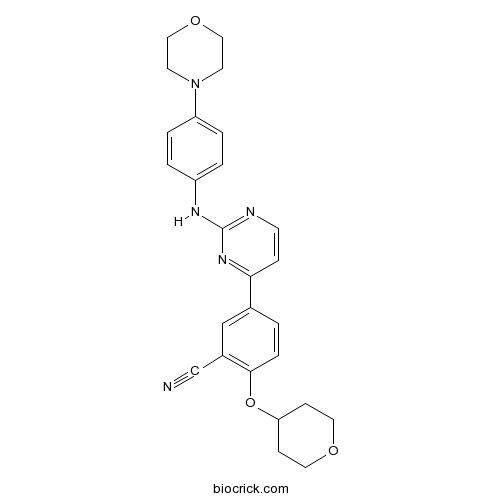

Chemical structure

IKKε-IN-1

3D structure

Chemical Properties of IKKε-IN-1

Cas No. 1292310-49-6 SDF Download SDF
PubChem ID 51049969 Appearance Powder
Formula C26H27N5O3 M.Wt 457.52
Type of Compound N/A Storage Desiccate at -20°C
Solubility DMSO : 21.5 mg/mL (46.99 mM; Need ultrasonic and warming)
Chemical Name 5-[2-(4-morpholin-4-ylanilino)pyrimidin-4-yl]-2-(oxan-4-yloxy)benzonitrile
SMILES C1COCCC1OC2=C(C=C(C=C2)C3=NC(=NC=C3)NC4=CC=C(C=C4)N5CCOCC5)C#N
Standard InChIKey BWABTWGSXHTHCG-UHFFFAOYSA-N
Standard InChI InChI=1S/C26H27N5O3/c27-18-20-17-19(1-6-25(20)34-23-8-13-32-14-9-23)24-7-10-28-26(30-24)29-21-2-4-22(5-3-21)31-11-15-33-16-12-31/h1-7,10,17,23H,8-9,11-16H2,(H,28,29,30)
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months.
Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it.
About Packaging 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial.
2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial.
3. Try to avoid loss or contamination during the experiment.
Shipping Condition Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request.

Protocol

Cell Assay [1]
Cell proliferation experiments are carried out in a 96-well format (6 replicates), Panc 02.13 cells are plated at a density of 2,000 to 5,000 cells per well. At 24 hours following cell seeding, the cells are treated with the tool inhibitor titrations (e.g., TBK1/IKKε-IN-2, 1 nM, 10 nM, 100 nM, 1 μM and 10 μM) for 4 days at 37°C and then assayed by using the ATP CellTiter-Glo luminescent cell viability assay[1].

References:
[1]. Muvaffak A, et al. Evaluating TBK1 as a therapeutic target in cancers with activated IRF3. Mol Cancer Res. 2014 Jul;12(7):1055-66.

IKKε-IN-1 Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

IKKε-IN-1 Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Preparing Stock Solutions of IKKε-IN-1

1 mg 5 mg 10 mg 20 mg 25 mg
1 mM 2.1857 mL 10.9285 mL 21.857 mL 43.7139 mL 54.6424 mL
5 mM 0.4371 mL 2.1857 mL 4.3714 mL 8.7428 mL 10.9285 mL
10 mM 0.2186 mL 1.0928 mL 2.1857 mL 4.3714 mL 5.4642 mL
50 mM 0.0437 mL 0.2186 mL 0.4371 mL 0.8743 mL 1.0928 mL
100 mM 0.0219 mL 0.1093 mL 0.2186 mL 0.4371 mL 0.5464 mL
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations.

Organizitions Citing Our Products recently





Calcutta University

University of Minnesota

University of Maryland School of Medicine

University of Illinois at Chicago

The Ohio State University

University of Zurich

Harvard University

Colorado State University

Auburn University

Yale University

Worcester Polytechnic Institute

Washington State University

Stanford University

University of Leipzig

Universidade da Beira Interior

The Institute of Cancer Research

Heidelberg University

University of Amsterdam

University of Auckland
TsingHua University
TsingHua University
The University of Michigan
The University of Michigan
Miami University
Miami University
DRURY University
DRURY University
Jilin University
Jilin University
Fudan University
Fudan University
Wuhan University
Wuhan University
Sun Yat-sen University
Sun Yat-sen University
Universite de Paris
Universite de Paris
Deemed University
Deemed University
Auckland University
Auckland University
The University of Tokyo
The University of Tokyo
Korea University
Korea University

Background on IKKε-IN-1

TBK1/IKKε-IN-2 is a dual TBK1 and IKKε inhibitor.

In Vitro:TBK1/IKKε-IN-2 (Cmpound #1) inhibits TBK1 biochemical function in Ulight kinase assay at 5 and 250 μM ATP concentration with IC50s of 0.6 and 2.6 nM, rsespectively. TBK1/IKKε-IN-2 inhibits IKKε biochemical function in Ulight kinase assay at 10 μM ATP with an IC50 of 3.9 nM. The IC50 of TBK1/IKKε-IN-2 in the Panc 02.13 proliferation assay is 5 μM[1].

References:
[1]. Muvaffak A, et al. Evaluating TBK1 as a therapeutic target in cancers with activated IRF3. Mol Cancer Res. 2014 Jul;12(7):1055-66.

Featured Products
New Products


Description

TBK1/IKKε-IN-2 is a dual TBK1 and IKKε inhibitor.
