GSK690693

Pan-AKT inhibitor,ATP-competitive and potent CAS# 937174-76-0

GSK690693

Catalog No. BCC2483----Order now to get a substantial discount!

Product Name & Size Price Stock
GSK690693:5mg $70.00 In stock
GSK690693:10mg $119.00 In stock
GSK690693:25mg $280.00 In stock
GSK690693:50mg $490.00 In stock
Related Products

Quality Control of GSK690693

Number of papers citing our products

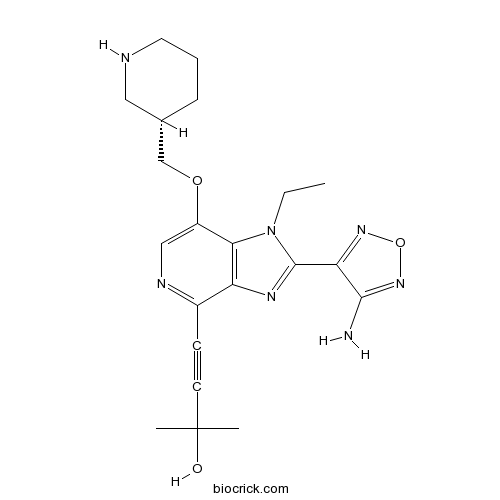

Chemical structure

GSK690693

3D structure

Chemical Properties of GSK690693

Cas No. 937174-76-0 SDF Download SDF
PubChem ID 16725726 Appearance Powder
Formula C21H27N7O3 M.Wt 425.48
Type of Compound N/A Storage Desiccate at -20°C
Solubility DMSO : 25 mg/mL (58.76 mM; Need ultrasonic)
Chemical Name 4-[2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-[[(3S)-piperidin-3-yl]methoxy]imidazo[4,5-c]pyridin-4-yl]-2-methylbut-3-yn-2-ol
SMILES CCN1C2=C(C(=NC=C2OCC3CCCNC3)C#CC(C)(C)O)N=C1C4=NON=C4N
Standard InChIKey KGPGFQWBCSZGEL-ZDUSSCGKSA-N
Standard InChI InChI=1S/C21H27N7O3/c1-4-28-18-15(30-12-13-6-5-9-23-10-13)11-24-14(7-8-21(2,3)29)16(18)25-20(28)17-19(22)27-31-26-17/h11,13,23,29H,4-6,9-10,12H2,1-3H3,(H2,22,27)/t13-/m0/s1
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months.
Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it.
About Packaging 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial.
2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial.
3. Try to avoid loss or contamination during the experiment.
Shipping Condition Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request.

Biological Activity of GSK690693

DescriptionATP-competitive pan-Akt kinase inhibitor (IC50 values are 2, 13 and 9 nM of Akt1, 2 and 3 respectively). Also exhibits some inhibition for AMPK, PKA and PAK and PKC isoforms (IC50 < 100 nM). Displays antiproliferative and apoptotic effects in tumor cell lines.

Protocol

Kinase Assay [1]
His-tagged full-length Akt1, 2, or 3 are expressed and purified from baculovirus. Activation is carried out with purified PDK1 to phosphorylate Thr308 and purified MK2 to phosphorylate Ser473. To more accurately measure time-dependent inhibition of Akt, activated Akt enzymes are incubated with GSK690693 at various concentrations at room temperature for 30 minutes before the reaction is initiated with the addition of substrate. Final reaction contains 5 nM to 15 nM Akt1, 2, and 3 enzymes; 2 μM ATP; 0.15 μCi/μL[γ-33P]ATP; 1 μM Peptide (Biotin-aminohexanoicacid-ARKR-ERAYSFGHHA-amide); 10 mM MgCl2; 25 mM MOPS (pH 7.5); 1 mM DTT; 1 mM CHAPS; and 50 mM KCl. The reactions are incubated at room temperature for 45 minutes, followed by termination with Leadseeker beads in PBS containing EDTA (final concentration, 2 mg/mL beads and 75 mM EDTA). The plates are then sealed, the beads are allowed to settle for at least 5 hours, and product formation is quantitated using a Viewlux Imager.

Cell Assay [1]
Cells are plated at densities that allow untreated cells to grow logarithmically during the course of a 3-day assay. Briefly, cells are plated in 96- or 384-well plates and incubated overnight. Cells are then treated with GSK690693 (ranging from 30 μM-1.5 nM) and incubated for 72 hours. Cell proliferation is measured using the CellTiter Glo reagent. Data are analyzed using the XLFit curve-fitting tool for Microsoft Excel. IC50 values are obtained by fitting data to Eq, 2.

Animal Administration [1]
Tumors are initiated by injection of tumor cell suspension (HCC1954, MDA-MB-453, and LNCaP) or tumor fragments (BT474, SKOV-3, and PANC1) s.c. in 8- to 12-wk-old CD1 Swiss Nude mice (LNCaP, SKOV-3, and PANC1) or SCID mice (HCC1954, MDA-MB-453, and BT474). When tumors reach a volume of 100 to 200 mm3, mice are randomized and divided into groups of 8 to 12 mice per group. GSK690693 is administered once daily at 10, 20, and 30 mg/kg by i.p. administration. Animals are euthanized by inhalation of CO2 at the completion of the study. Tumor volume is measured twice weekly by calipers, using the equation: tumor volume (mm3)=(length × width2)/2. Results are reported as % inhibition on day 21 of treatment=100× [1-(average growth of the drug-treated population/average growth of vehicle-treated control population)]. Statistical analysis is done using two-tailed t test.

References:
[1]. Rhodes N, et al. Characterization of an Akt kinase inhibitor with potent pharmacodynamic and antitumor activity. Cancer Res, 2008, 68(7), 2366-2374. [2]. Levy DS, et al. AKT inhibitor, GSK690693, induces growth inhibition and apoptosis in acute lymphoblastic leukemia cell lines. Blood, 2009, 113(8), 1723-1729. [3]. Altomare DA, et al. GSK690693 delays tumor onset and progression in genetically defined mouse models expressing activated Akt. Clin Cancer Res, 2010, 16(2), 486-496.

GSK690693 Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

GSK690693 Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Preparing Stock Solutions of GSK690693

1 mg 5 mg 10 mg 20 mg 25 mg
1 mM 2.3503 mL 11.7514 mL 23.5029 mL 47.0057 mL 58.7572 mL
5 mM 0.4701 mL 2.3503 mL 4.7006 mL 9.4011 mL 11.7514 mL
10 mM 0.235 mL 1.1751 mL 2.3503 mL 4.7006 mL 5.8757 mL
50 mM 0.047 mL 0.235 mL 0.4701 mL 0.9401 mL 1.1751 mL
100 mM 0.0235 mL 0.1175 mL 0.235 mL 0.4701 mL 0.5876 mL
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations.

Organizitions Citing Our Products recently





Calcutta University

University of Minnesota

University of Maryland School of Medicine

University of Illinois at Chicago

The Ohio State University

University of Zurich

Harvard University

Colorado State University

Auburn University

Yale University

Worcester Polytechnic Institute

Washington State University

Stanford University

University of Leipzig

Universidade da Beira Interior

The Institute of Cancer Research

Heidelberg University

University of Amsterdam

University of Auckland
TsingHua University
TsingHua University
The University of Michigan
The University of Michigan
Miami University
Miami University
DRURY University
DRURY University
Jilin University
Jilin University
Fudan University
Fudan University
Wuhan University
Wuhan University
Sun Yat-sen University
Sun Yat-sen University
Universite de Paris
Universite de Paris
Deemed University
Deemed University
Auckland University
Auckland University
The University of Tokyo
The University of Tokyo
Korea University
Korea University

Background on GSK690693

GSK690693 is a pan-Akt inhibitor targeting Akt1, 2, 3 with IC50 values of 2, 13 and 9 nM, respectively [1, 2]. In addition, it also inhibits AMPK (IC50=50 nM), DAPK3 (IC50=81 nM), PAK4, 5, and 6 (IC50=10, 52, 6 nM), as well as the members of AGC kinase family including PKA (IC50=24 nM), PrkX (IC50=5 nM), and PKC isozymes (IC50=2-21 nM) [1]. GSK690693 reversibly occupies the ATP binding pocket of the kinase domain and competes with ATP as shown by crystal structure [2]. It blocks the phosphorylation of downstream targets of ATK in a dose-dependent manner [1].

GSK690693 has shown potential anti-tumor activity both in vitro and in vivo.

Akt plays an important role in regulation of cell cycle progression and tumor cell survival. GSK690693 reduced proliferation and led to apoptosis in tumor cells with potency correlated to the inhibited activity of Akt kinase [1, 3]. In xenografts models, it inhibited the growth of SKOV-3 ovarian, LNCaP prostate, and BT474 and HCC-1954 breast tumors [1]. It delayed the tumor progression in transgenic mice expressing a constitutively activated form of Akt [4]. GSK690693 has been tested in phase I clinical trials [5].

References:
[1]Rhodes N, Heerding DA, Duckett DR et al. Characterization of an Akt kinase inhibitor with potent pharmacodynamic and antitumor activity. Cancer Res 2008; 68: 2366-2374.[2]Heerding DA, Rhodes N, Leber JD et al. Identification of 4-(2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-{[(3S)-3-piperidinylmethyl]oxy}-1H- imidazo[4,5-c]pyridin-4-yl)-2-methyl-3-butyn-2-ol (GSK690693), a novel inhibitor of AKT kinase. J Med Chem 2008; 51: 5663-5679.[3]Levy DS, Kahana JA, Kumar R. AKT inhibitor, GSK690693, induces growth inhibition and apoptosis in acute lymphoblastic leukemia cell lines. Blood 2009; 113: 1723-1729.[4]Altomare DA, Zhang L, Deng J et al. GSK690693 delays tumor onset and progression in genetically defined mouse models expressing activated Akt. Clin Cancer Res 2010; 16: 486-496.[5]Pal SK, Reckamp K, Yu H, Figlin RA. Akt inhibitors in clinical development for the treatment of cancer. Expert Opin Investig Drugs 2010; 19: 1355-1366.

Featured Products
New Products


References on GSK690693

Causal reasoning identifies mechanisms of sensitivity for a novel AKT kinase inhibitor, GSK690693.[Pubmed:20604938]

BMC Genomics. 2010 Jul 6;11:419.

BACKGROUND: Inappropriate activation of AKT signaling is a relatively common occurrence in human tumors, and can be caused by activation of components of, or by loss or decreased activity of inhibitors of, this signaling pathway. A novel, pan AKT kinase inhibitor, GSK690693, was developed in order to interfere with the inappropriate AKT signaling seen in these human malignancies. Causal network modeling is a systematic computational analysis that identifies upstream changes in gene regulation that can serve as explanations for observed changes in gene expression. In this study, causal network modeling is employed to elucidate mechanisms of action of GSK690693 that contribute to its observed biological effects. The mechanism of action of GSK690693 was evaluated in multiple human tumor cell lines from different tissues in 2-D cultures and xenografts using RNA expression and phosphoproteomics data. Understanding the molecular mechanism of action of novel targeted agents can enhance our understanding of various biological processes regulated by the intended target and facilitate their clinical development. RESULTS: Causal network modeling on transcriptomic and proteomic data identified molecular networks that are comprised of activated or inhibited mechanisms that could explain observed changes in the sensitive cell lines treated with GSK690693. Four networks common to all cell lines and xenografts tested were identified linking GSK690693 inhibition of AKT kinase activity to decreased proliferation. These networks included increased RB1 activity, decreased MYC activity, decreased TFRC activity, and increased FOXO1/FOXO3 activity. CONCLUSION: AKT is involved in regulating both cell proliferation and apoptotic pathways; however, the primary effect with GSK690693 appears to be anti-proliferative in the cell lines and xenografts evaluated. Furthermore, these results indicate that anti-proliferative responses to GSK690693 in either 2-D culture or xenograft models may share common mechanisms within and across sensitive cell lines.

GSK690693 delays tumor onset and progression in genetically defined mouse models expressing activated Akt.[Pubmed:20075391]

Clin Cancer Res. 2010 Jan 15;16(2):486-96.

PURPOSE: Akt plays a central role in regulating tumor cell survival and cell cycle progression and is regarded as a promising therapeutic target. We used genetically defined mouse models that develop spontaneous tumors exhibiting activated Akt to determine if Akt inhibition by GSK690693 is effective in the treatment of cancer. The broad long-term objective of this project was to use preclinical cancer models with precisely defined genetic lesions to elucidate the efficacy of targeting Akt with GSK690693. EXPERIMENTAL DESIGN: We tested the in vivo effects of GSK690693 in Lck-MyrAkt2 transgenic mice that develop lymphomas, heterozygous Pten(+/-) knockout mice that exhibit endometrial tumors, and TgMISIIR-TAg-DR26 mice that develop ovarian carcinomas, all of which exhibit hyperactivation of Akt. In addition to standard disease onset and histology, tumors arising in treated animals were examined by immunohistochemistry to verify downregulated Akt signaling relative to placebo-treated mice. When possible, drug response was evaluated in tumor cell cultures by standard proliferation and apoptosis assays and by immunoblotting with various phosphospecific antibodies. RESULTS: GSK690693 exhibited efficacy irrespective of the mechanism of Akt activation involved. Interestingly, GSK690693 was most effective in delaying tumor progression in Lck-MyrAkt2 mice expressing a membrane-bound, constitutively active form of Akt. Both tumors and primary cell cultures displayed downregulation of the Akt pathway, increased apoptosis, and primarily decreased cell proliferation. CONCLUSION: These results suggest that GSK690693 or other Akt inhibitors might have therapeutic efficacy in human cancers with hyperactivated Akt and/or a dependence on Akt signaling for tumor progression.

Initial testing (stage 1) of the Akt inhibitor GSK690693 by the pediatric preclinical testing program.[Pubmed:20740623]

Pediatr Blood Cancer. 2010 Dec 15;55(7):1329-37.

BACKGROUND: GSK690693 is a small molecule ATP-competitive inhibitor of the pro-survival kinase Akt. Since Akt regulates multiple downstream targets including transcription factors, glycogen synthase 3, the pro-apoptotic protein Bad, as well as MDM2 and mTORC1, it was tested against the in vitro and in vivo panels of the Pediatric Preclinical Testing Program (PPTP). PROCEDURES: GSK690693 was tested in vitro at concentrations from 1 nM to 10 microM, and against the in vivo panel of xenografts at a dose of 30 mg/kg daily x 5 for 6 consecutive weeks. Three measures of in vivo antitumor activity were used: (1) an objective response measure modeled after the clinical setting; (2) a treated to control (T/C) tumor volume measure; and (3) a time to event measure based on the median event-free survival (EFS) of treated and control animals for each xenograft. RESULTS: GSK690693 inhibited cell growth in vitro with IC(50) values between 6.5 nM and >10 microM. In vivo, GSK690693 significantly increased EFS in 11 of 34 (32%) solid tumor xenografts, most notably in all 6 osteosarcoma models, but not in any of the 8 ALL xenografts tested. No objective responses were observed and only one solid tumor met EFS T/C criteria for intermediate activity. CONCLUSIONS: GSK690693 demonstrated broad activity in vitro, however our results against both the solid tumor and ALL PPTP in vivo panels demonstrate that, as single agent at the dose and schedule used, GSK690693 has only modest antitumor activity.

Discovery of 14-3-3 protein-protein interaction inhibitors that sensitize multidrug-resistant cancer cells to doxorubicin and the Akt inhibitor GSK690693.[Pubmed:24715717]

ChemMedChem. 2014 May;9(5):973-83.

14-3-3 is a family of highly conserved adapter proteins that is attracting much interest among medicinal chemists. Small-molecule inhibitors of 14-3-3 protein-protein interactions (PPIs) are in high demand, both as tools to increase our understanding of 14-3-3 actions in human diseases and as leads to develop innovative therapeutic agents. Herein we present the discovery of novel 14-3-3 PPI inhibitors through a multidisciplinary strategy combining molecular modeling, organic synthesis, image-based high-content analysis of reporter cells, and in vitro assays using cancer cells. Notably, the two most active compounds promoted the translocation of c-Abl and FOXO pro-apoptotic factors into the nucleus and sensitized multidrug-resistant cancer cells to apoptotic inducers such as doxorubicin and the pan-Akt inhibitor GSK690693, thus becoming valuable lead candidates for further optimization. Our results emphasize the possible role of 14-3-3 PPI inhibitors in anticancer combination therapies.

Identification of 4-(2-(4-amino-1,2,5-oxadiazol-3-yl)-1-ethyl-7-{[(3S)-3-piperidinylmethyl]oxy}-1H- imidazo[4,5-c]pyridin-4-yl)-2-methyl-3-butyn-2-ol (GSK690693), a novel inhibitor of AKT kinase.[Pubmed:18800763]

J Med Chem. 2008 Sep 25;51(18):5663-79.

Overexpression of AKT has an antiapoptotic effect in many cell types, and expression of dominant negative AKT blocks the ability of a variety of growth factors to promote survival. Therefore, inhibitors of AKT kinase activity might be useful as monotherapy for the treatment of tumors with activated AKT. Herein, we describe our lead optimization studies culminating in the discovery of compound 3g (GSK690693). Compound 3g is a novel ATP competitive, pan-AKT kinase inhibitor with IC 50 values of 2, 13, and 9 nM against AKT1, 2, and 3, respectively. An X-ray cocrystal structure was solved with 3g and the kinase domain of AKT2, confirming that 3g bound in the ATP binding pocket. Compound 3g potently inhibits intracellular AKT activity as measured by the inhibition of the phosphorylation levels of GSK3beta. Intraperitoneal administration of 3g in immunocompromised mice results in the inhibition of GSK3beta phosphorylation and tumor growth in human breast carcinoma (BT474) xenografts.

Characterization of an Akt kinase inhibitor with potent pharmacodynamic and antitumor activity.[Pubmed:18381444]

Cancer Res. 2008 Apr 1;68(7):2366-74.

Akt kinases 1, 2, and 3 are important regulators of cell survival and have been shown to be constitutively active in a variety of human tumors. GSK690693 is a novel ATP-competitive, low-nanomolar pan-Akt kinase inhibitor. It is selective for the Akt isoforms versus the majority of kinases in other families; however, it does inhibit additional members of the AGC kinase family. It causes dose-dependent reductions in the phosphorylation state of multiple proteins downstream of Akt, including GSK3 beta, PRAS40, and Forkhead. GSK690693 inhibited proliferation and induced apoptosis in a subset of tumor cells with potency consistent with intracellular inhibition of Akt kinase activity. In immune-compromised mice implanted with human BT474 breast carcinoma xenografts, a single i.p. administration of GSK690693 inhibited GSK3 beta phosphorylation in a dose- and time-dependent manner. After a single dose of GSK690693, >3 micromol/L drug concentration in BT474 tumor xenografts correlated with a sustained decrease in GSK3 beta phosphorylation. Consistent with the role of Akt in insulin signaling, treatment with GSK690693 resulted in acute and transient increases in blood glucose level. Daily administration of GSK690693 produced significant antitumor activity in mice bearing established human SKOV-3 ovarian, LNCaP prostate, and BT474 and HCC-1954 breast carcinoma xenografts. Immunohistochemical analysis of tumor xenografts after repeat dosing with GSK690693 showed reductions in phosphorylated Akt substrates in vivo. These results support further evaluation of GSK690693 as an anticancer agent.

Description

GSK-690693 is an ATP-competitive pan-Akt inhibitor with IC50s of 2, 13, 9 nM for Akt1, Akt2 and Akt3, respectively. GSK-690693, an AMP-activated protein kinase (AMPK) inhibitor, affects Unc-51-like autophagy activating kinase 1 (ULK1) activity and robustly inhibits STING-dependent IRF3 activation.
